Pipelines

Automate document generation by connecting forms to templates

🔁 Pipelines

Pipelines in Wraft help you automate your document workflows by linking form data with templates. Instead of manually entering information for every document, you can collect responses through forms and have Wraft generate multiple tailored documents in one go.

Overview

Pipelines are especially useful when working with repetitive document types — such as contracts, agreements, or letters — that share a common data source. They simplify document generation by automating the process of creating multiple documents with a single set of data inputs.

â„šī¸ Info: Pipelines simplify document generation by automating the process of creating multiple documents with a single set of data inputs.


Creating a Pipeline

To create a new pipeline:

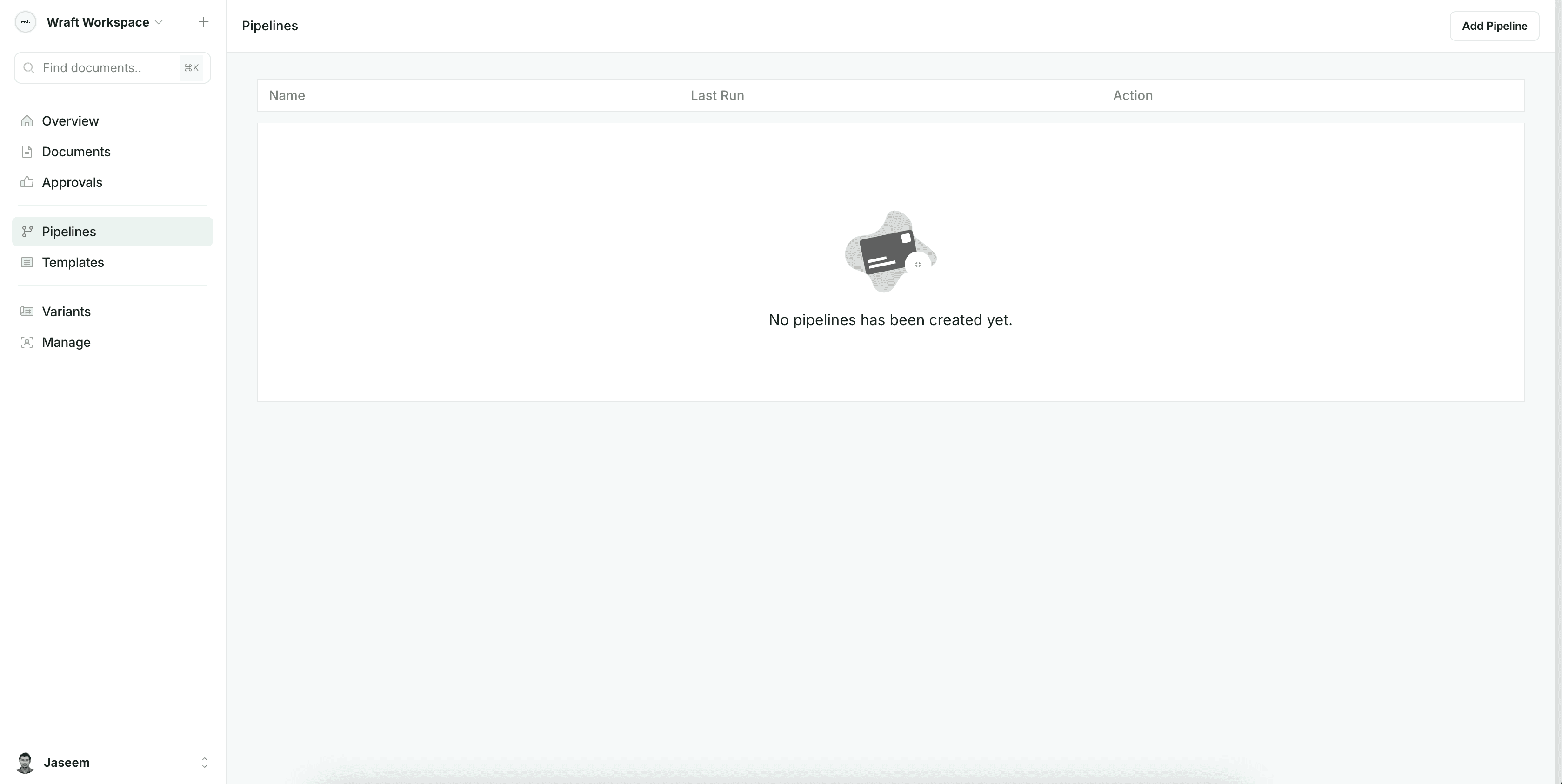

  1. Navigate to Pipelines

    Pipelines Section

    Go to the Pipelines section from the sidebar

  2. Add New Pipeline

    Add Pipeline

    Click the Add Pipeline button

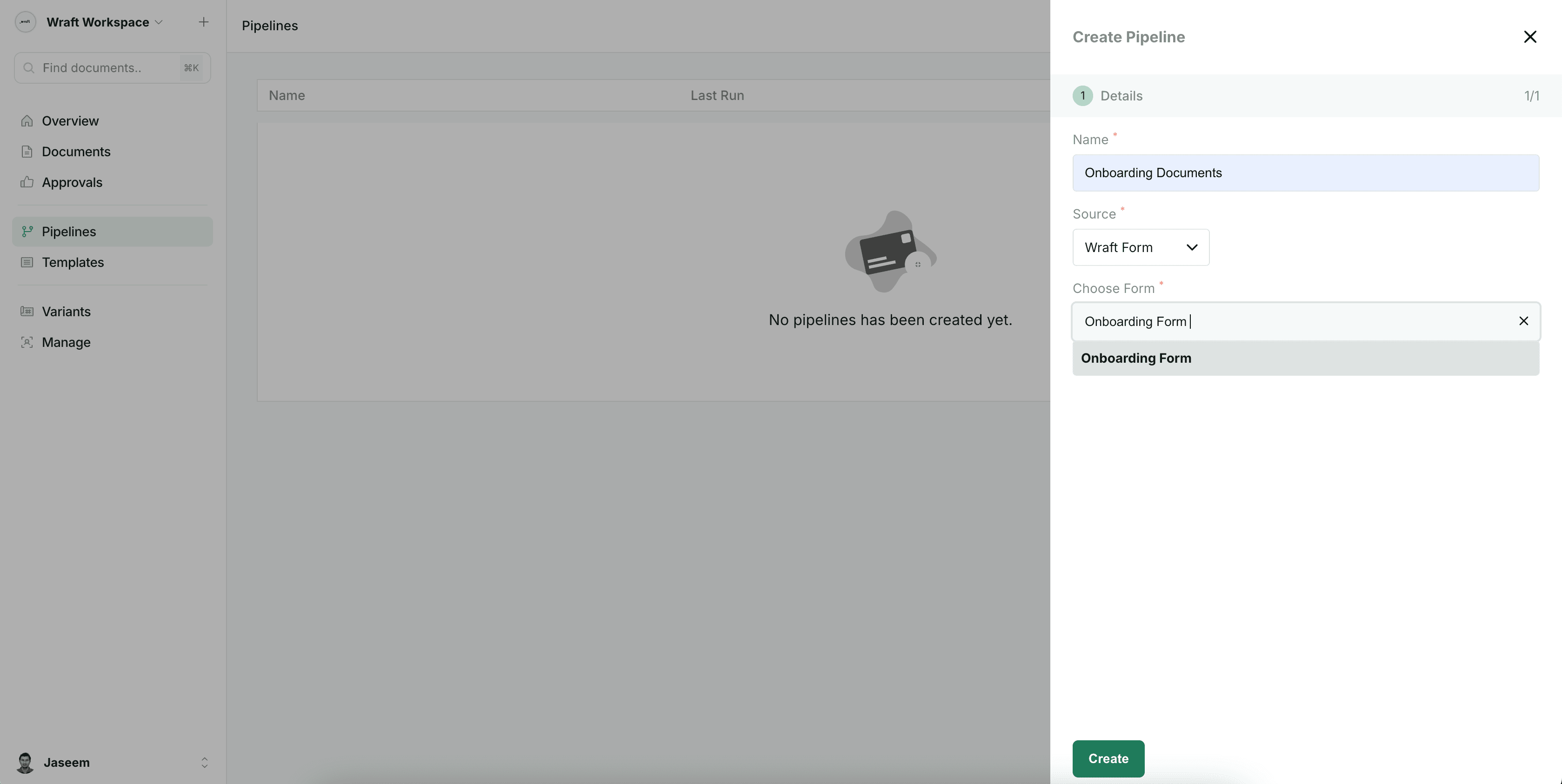

  3. Configure Pipeline

    • Enter a descriptive name for your pipeline (e.g., Sales Contract Workflow)
    • Choose your Pipeline Source:
      • Wraft Forms (default)
      • (External options such as Google Forms, if integrated)
    • Select the form you wish to connect to this pipeline
  4. Save Pipeline

    Click Save to create the pipeline

    The pipeline will now appear in your pipeline list and is ready to be configured with steps

â„šī¸ Info: The pipeline will now appear in your pipeline list and is ready to be configured with steps.


Configuring Pipeline Steps

Once your pipeline is created, it must be configured to define what documents it will generate and how form fields map to template fields.

Pipeline Management Interface

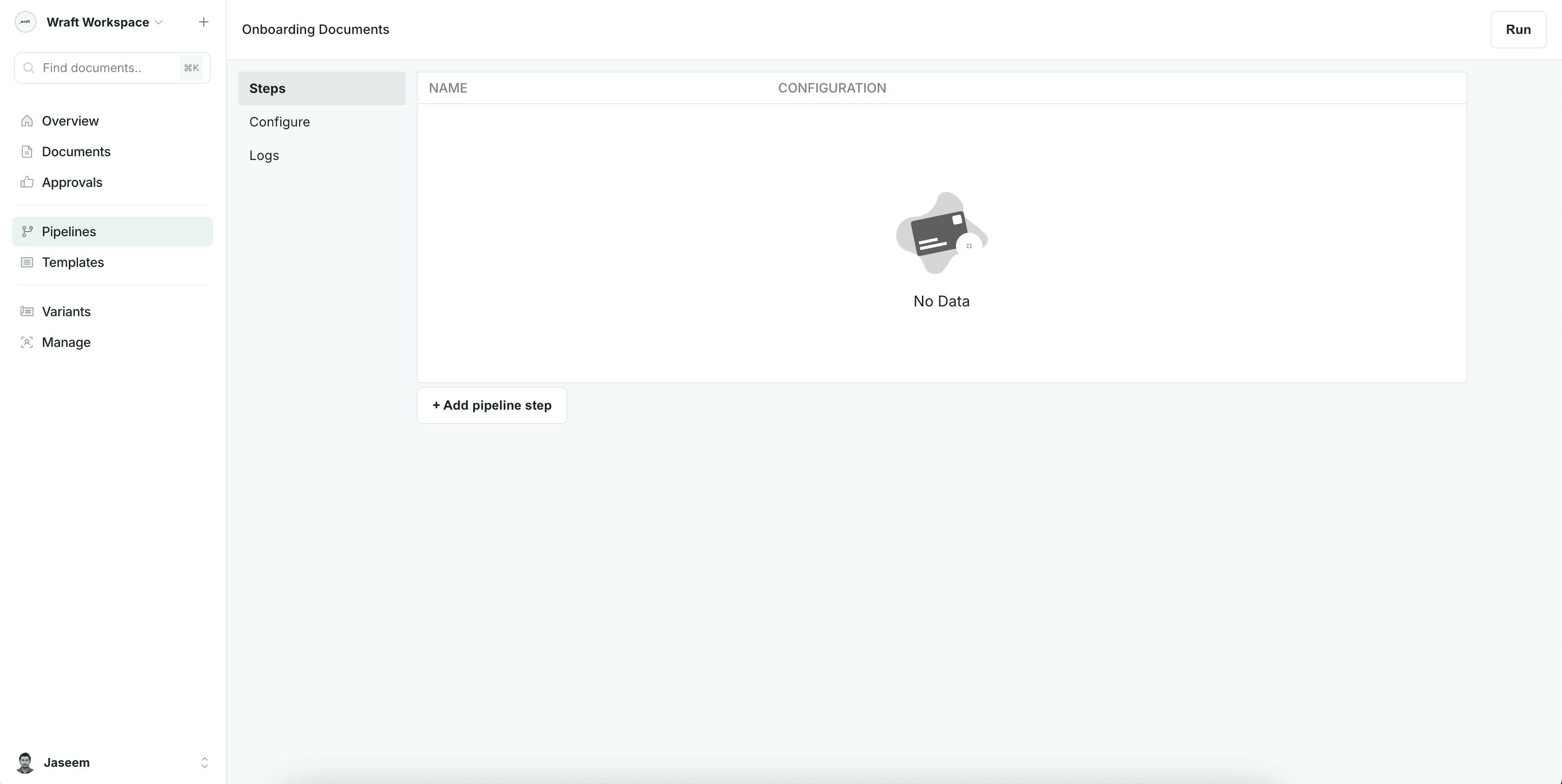

  1. Access Pipeline

    Pipeline Access

    Click on the newly created pipeline

  2. Understanding Tabs

    Pipeline Tabs

    You'll see three main tabs:

    • Steps: Add templates and set up field mappings
    • Configure: Modify pipeline settings such as its name or connected form
    • Logs: View the execution history of the pipeline

Adding a Pipeline Step

To define the documents that will be generated:

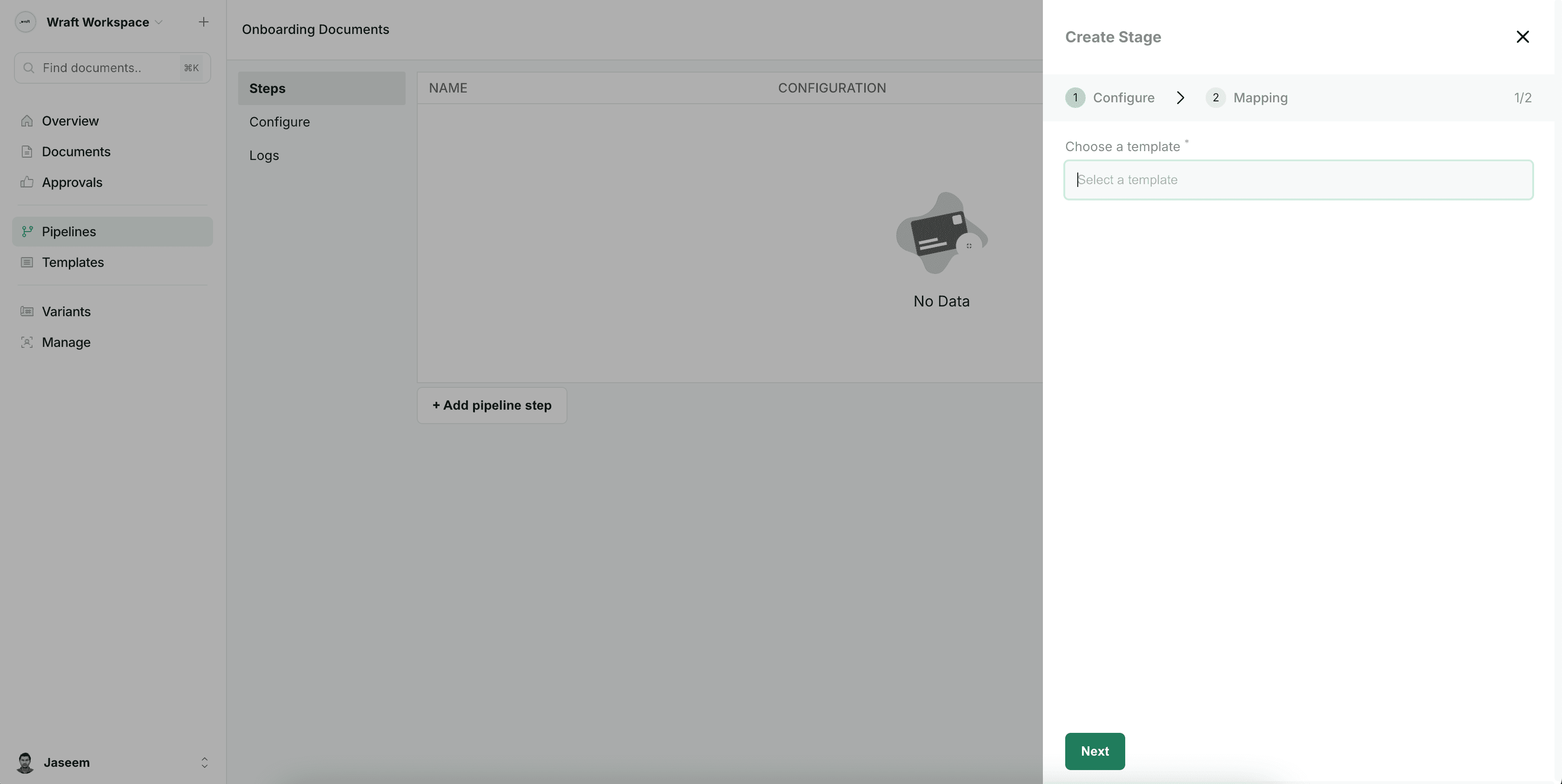

  1. Open Steps Tab

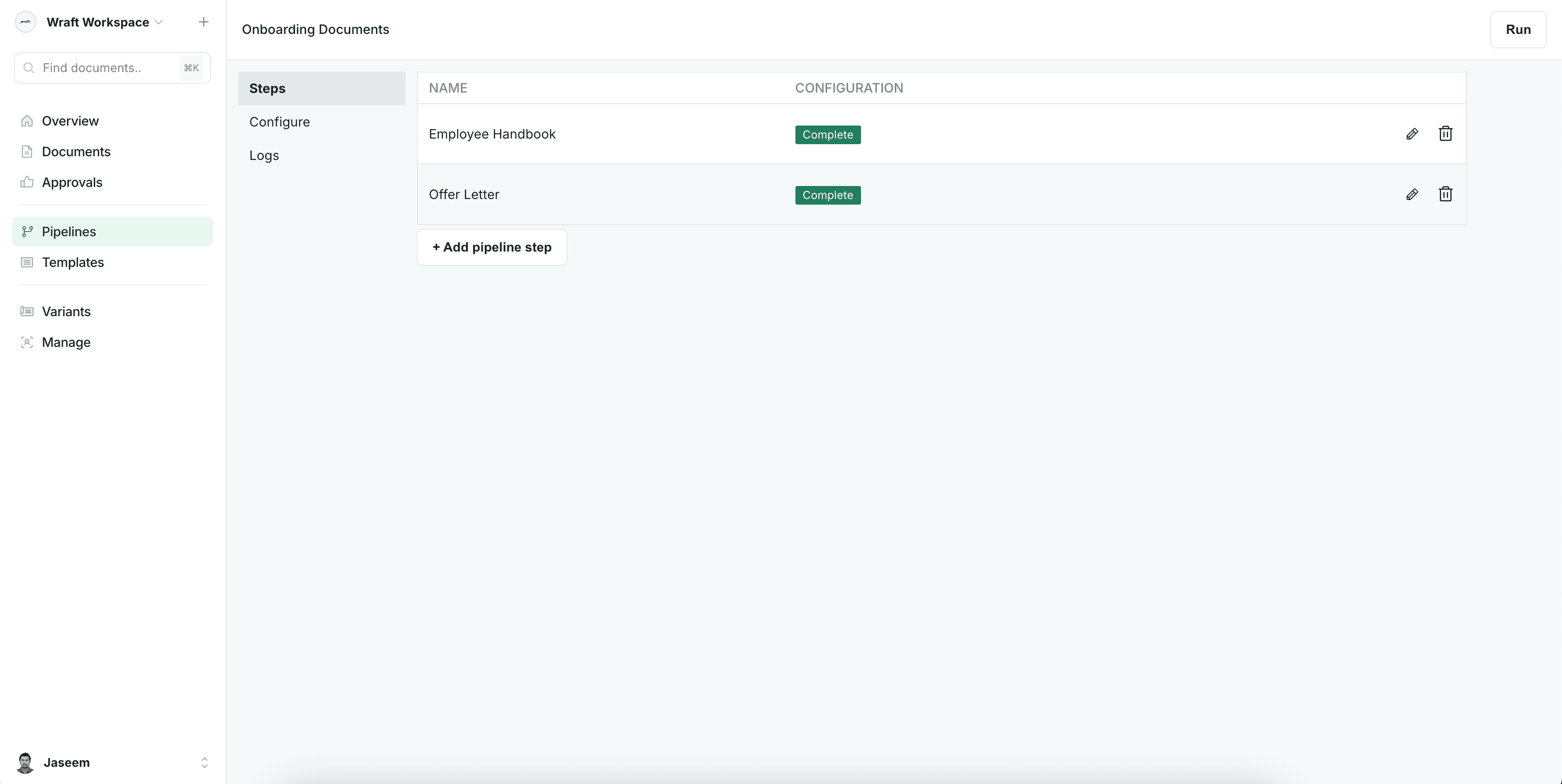

    Steps Tab

    Open the Steps tab and click Add Pipeline Step

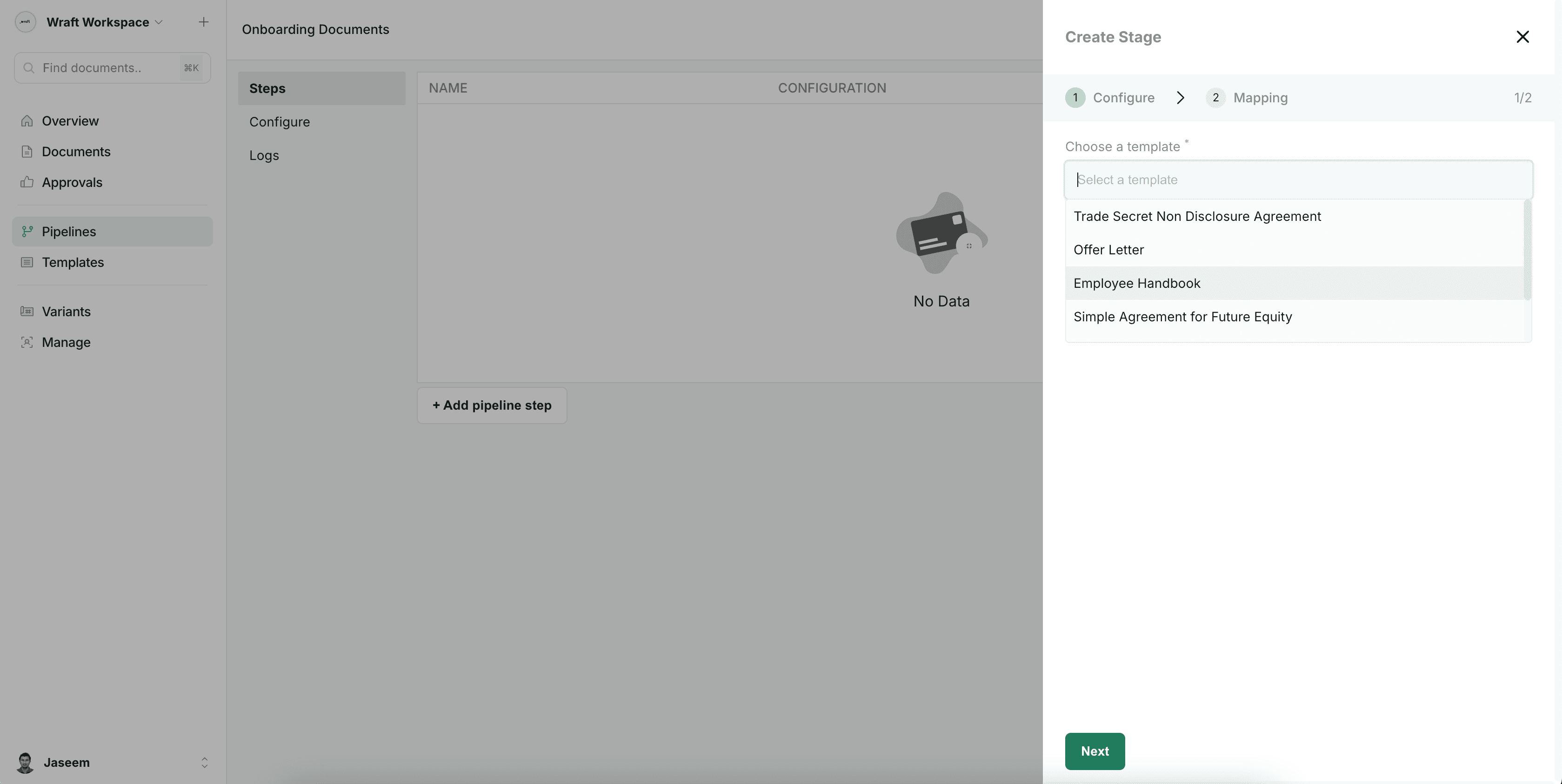

  2. Select Template

    Select Template

    A new setup tab will appear:

    • Select the Template you want to use for this step
  3. Map Fields

    Field Mapping

    After selecting the template, the Mapping Screen will appear:

    • Match each template field with the appropriate form field
    • Ensure all required fields are correctly mapped to avoid errors
  4. Save Step

    Save Step

    Click Save to finalize the step

â„šī¸ Info: You can repeat this process to add multiple pipeline steps, each linked to a different template — all driven by the same form data.


Running the Pipeline

Once all steps are configured:

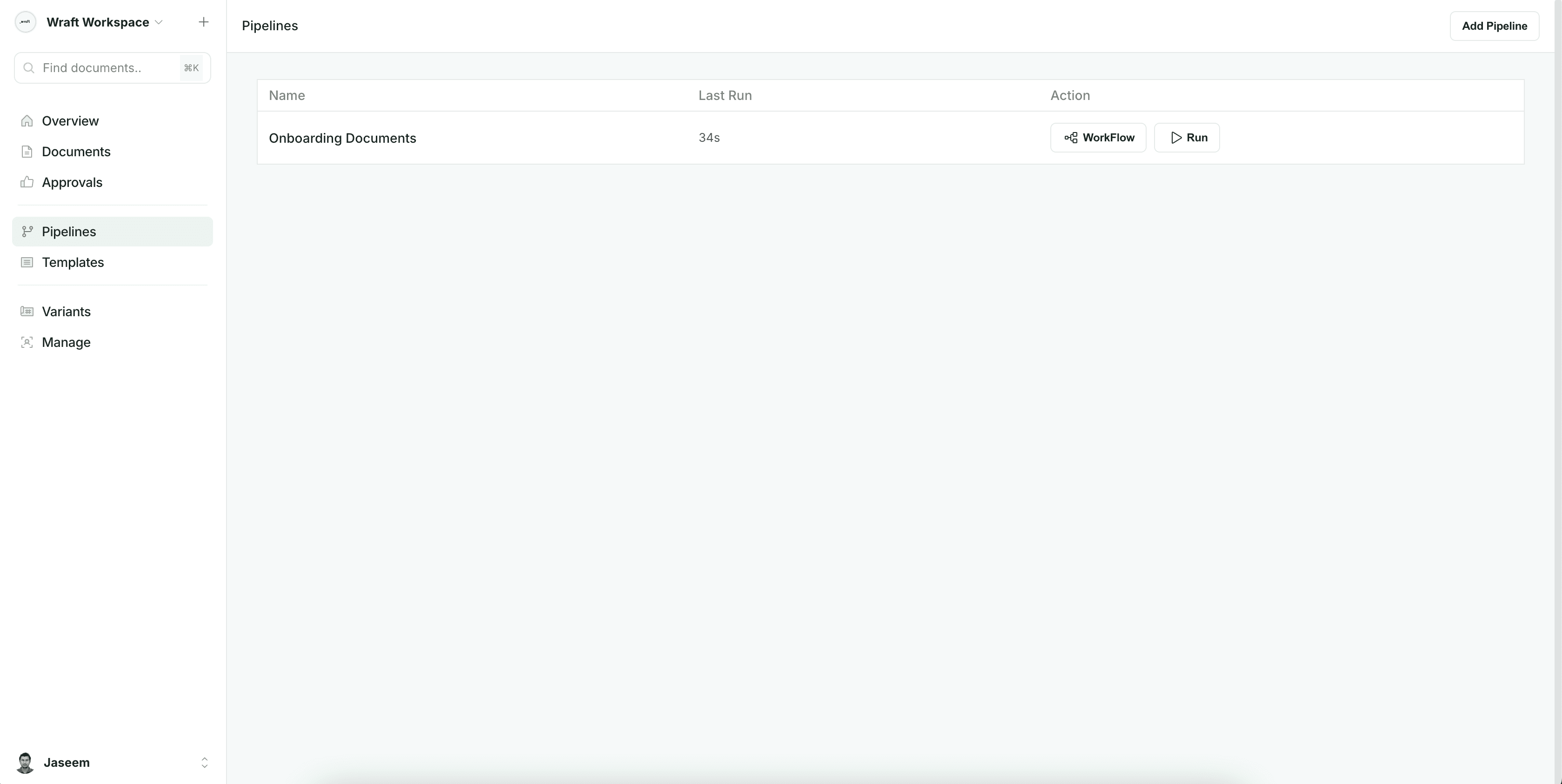

  1. Locate Pipeline

    Pipeline List

    In the pipeline list, locate your pipeline

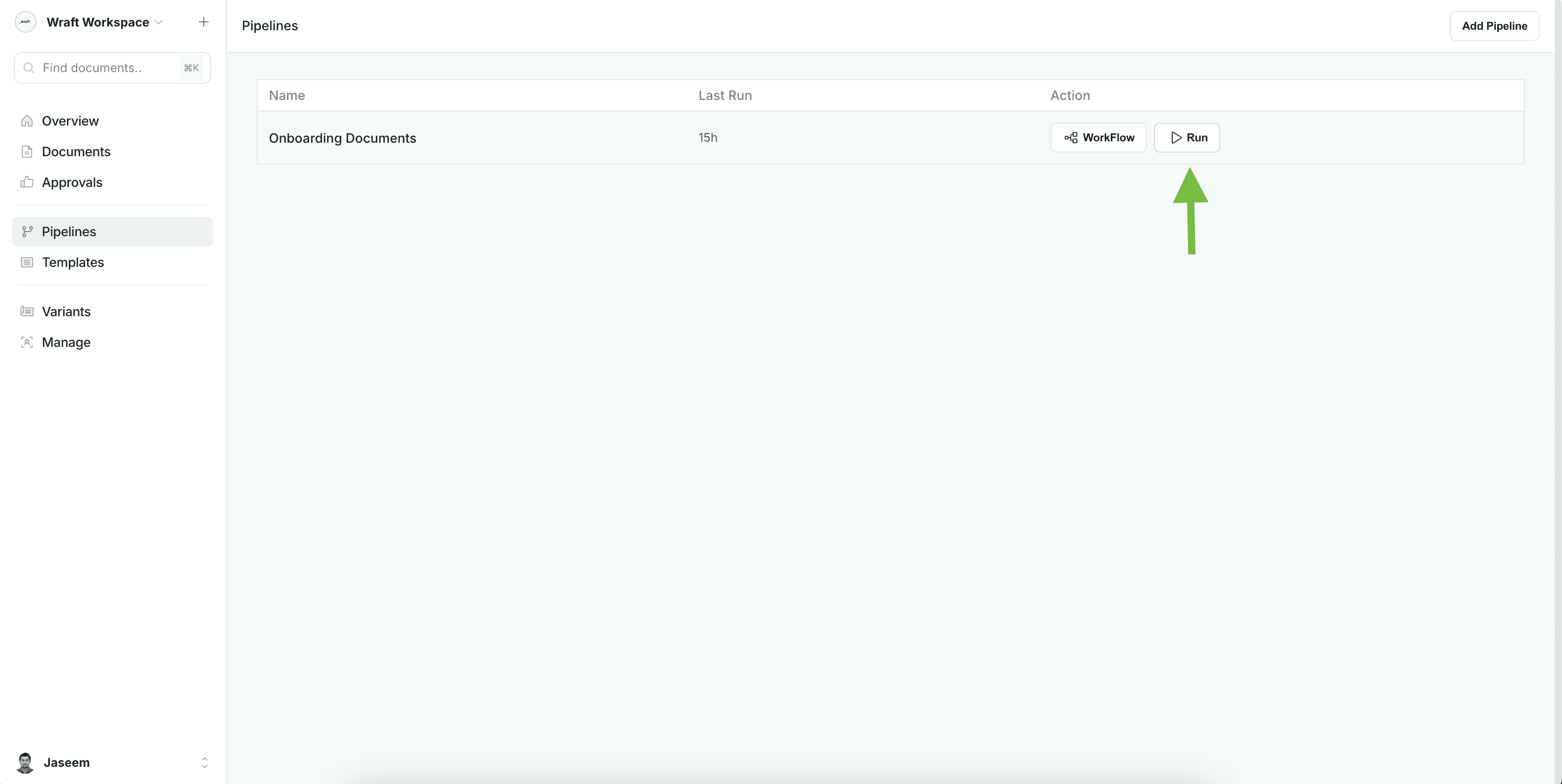

  2. Execute Pipeline

    Run Pipeline

    Click the Run button next to it

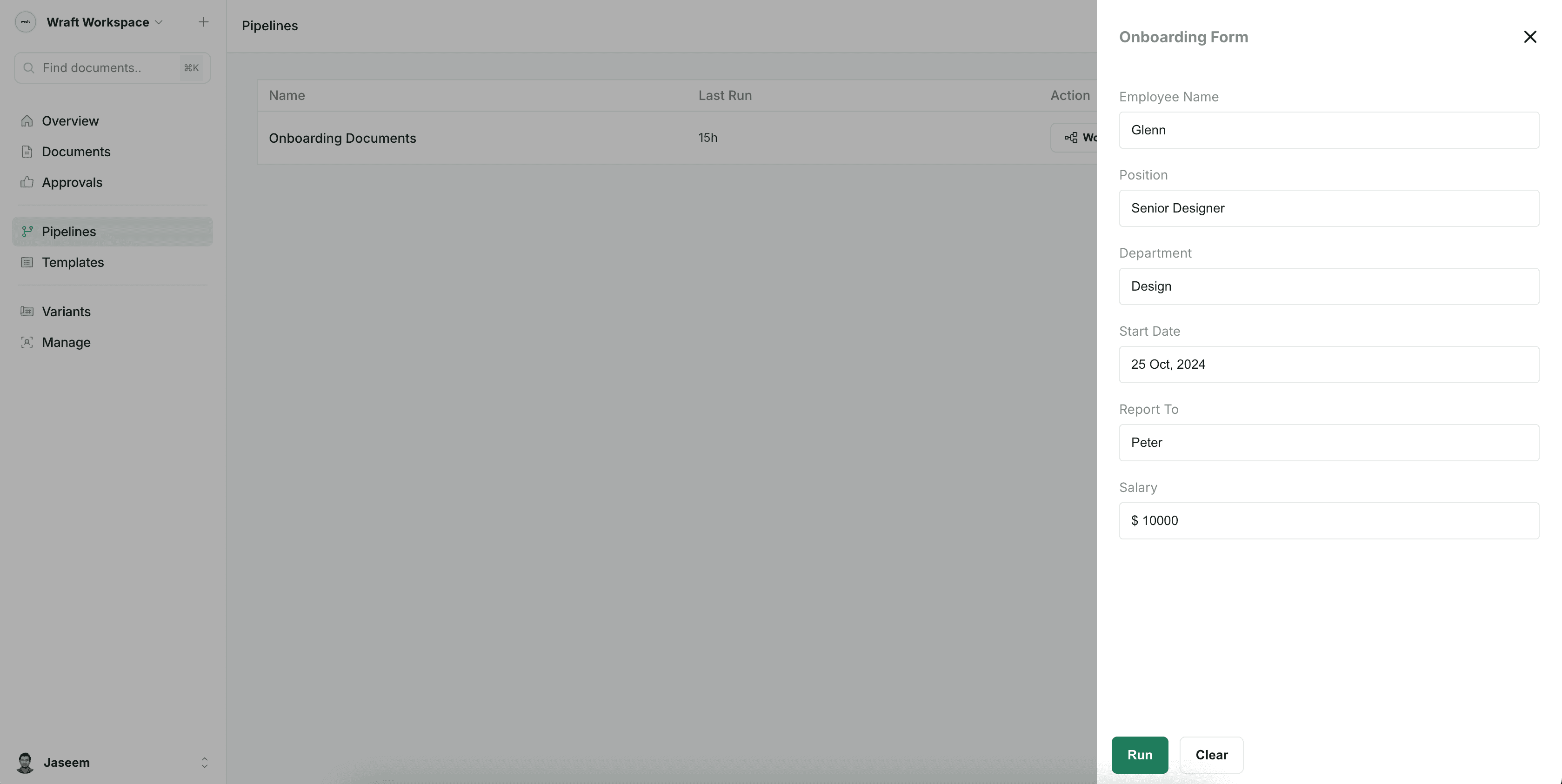

  3. Fill Form Data

    Form Data

    The associated form will appear — fill in the data as required

  4. Generate Documents

    Click Run to begin the document generation

    Wraft will process the form responses and generate one document for each pipeline step, producing fully formatted PDFs for every connected template


Pipeline Management

Tab Reference

  • Steps: Configure templates and map data fields
  • Configure: Update pipeline metadata such as name or form connection, or delete the pipeline
  • Logs: View previous runs, track success/failure, and audit the activity timeline

Monitoring and Maintenance

  • Review logs regularly to ensure all runs are successful and error-free
  • Test pipelines with sample data before production use
  • Update field mappings when templates or forms change
  • Archive unused pipelines to keep your workspace organized

Advanced Features

Multiple Template Steps

  • Add multiple templates to a single pipeline
  • Generate different document types from the same form data
  • Each step can use different field mappings as needed

Field Mapping Options

  • Direct mapping: Form field directly maps to template field
  • Conditional mapping: Map fields based on form responses
  • Default values: Set fallback values for optional fields
  • Data transformation: Format data during mapping (dates, currency, etc.)

Best Practices

Pipeline Design

  • Use clear naming conventions for pipelines and templates to avoid confusion
  • Keep field names consistent between forms and templates to simplify mapping
  • Document pipeline purposes and use cases for team reference
  • Start simple and add complexity gradually

Field Mapping

  • Test your mappings with dummy data to ensure all documents generate correctly
  • Use descriptive field names that clearly indicate their purpose
  • Validate required fields are properly mapped
  • Handle optional fields appropriately with defaults or conditions

Process Management

  • Monitor logs regularly to ensure all runs are successful and error-free
  • Set up error notifications for failed pipeline runs
  • Regular testing with updated templates and forms
  • Backup important pipelines before making significant changes

Common Use Cases

Client Onboarding

  • Collect client information through a single form
  • Generate welcome letter, service agreement, and project proposal
  • Each document uses relevant portions of the collected data

Employee Management

  • New hire form generates multiple HR documents
  • Offer letter, employment contract, benefits enrollment
  • Consistent data across all employee documentation

Sales Process

  • Lead qualification form drives sales documentation
  • Proposal, quote, and contract generation
  • Streamlined process from lead to signed agreement
